Looking for reliable ball cage bushes? Discover our durable, precision-engineered bushings designed for smooth, low-friction motion in industrial and mechanical applications. Built to last and easy to install.

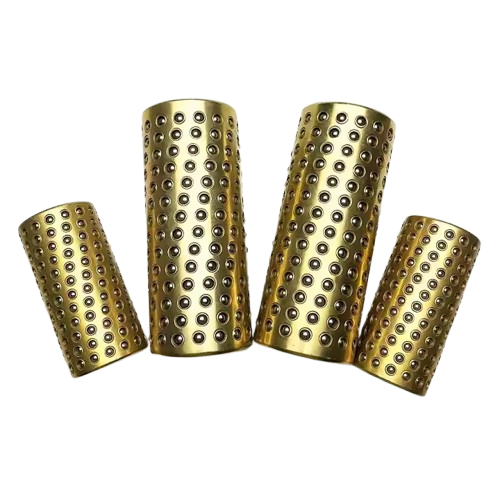

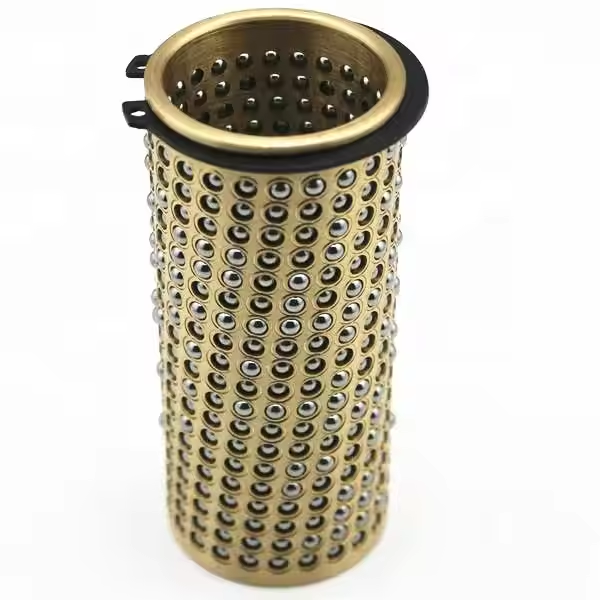

This is copper based material on which the rollers are arranged orderly in certain angle and intervals. Moreover, the retaining technique is improved that dropping of the rollers can be thoroughly prevented. The friction is low and can move freely both in redial and in axial directions, and the bushes is in high precision. This is a young generation of the roller bushes which can roll in high speed, and is used in rolling frame of cold impact moulds, high precision machine tools and their accessories. The steel ball array is mainly divided into two categories: spiral array and straight line array. Ball Cage bushes that are used in mechanical engineering . These Ball Cage bushes are used in injection molding applications and are precisely-made from different grades. Ball cages are made from specially treated solid Aluminum alloy and Brass. Ball cages are available in standard size and according to customer’s drawing also.
The Engineer’s Practical Guide to Ball Cage Bushes
If you’re in the world of precision machinery, automation, or tooling, chances are you’ve come across ball cage bushes—and for good reason. These small but mighty components are a key part of many linear motion systems, offering smooth, precise movement while handling high loads. Whether you’re specifying parts for new equipment or replacing worn ones, understanding what makes a good ball cage bush can help you make smart, cost-effective choices.
Why Ball Cage Bushes Matter
Ball cage bushes are essentially linear bearings that use a ball retainer (the “cage”) to house and guide a series of precision balls between an inner and outer race. This design allows for reduced friction, smooth linear motion, and improved longevity in applications where precision counts. They’re a go-to for mold tools, die sets, jigs, fixtures, and even robotics and packaging machinery.
What They’re Made Of: Design & Material Breakdown
Ball cage bushes typically come in two main types:
- Solid Ball Cage Bushes: Made from steel or bronze with hardened steel balls.
- Caged-Type Linear Bushes: With a polymer or metallic cage that separates and retains the balls.
Common Materials:
- Cage: Bronze, brass, aluminum, or engineered plastics like POM or PA66.
- Balls: Precision-grade hardened steel or stainless steel for corrosion resistance.
- Bush Body: Carbon steel or stainless steel, sometimes heat-treated for durability.
The design ensures balls don’t come into direct contact with each other, reducing wear and noise and extending service life.
What Makes Them Stand Out
Here are the main reasons engineers swear by ball cage bushes:
- Low Friction & Smooth Travel: Ideal for repetitive motion or precision setups.
- Long Life: Properly designed bushes reduce wear on both the balls and housing.
- Compact Design: Saves space while supporting substantial loads.
- Easy to Replace: Often modular or standardized for fast swaps.
- Reduced Maintenance: Thanks to self-lubricating designs or built-in grease grooves.
Types of Ball Bearing Cages
Different cage styles offer different performance:
- Cylindrical Retainers: Common for general linear motion.
- Spiral Cages: For higher-speed applications or longer stroke lengths.
- Precision Ground or Molded Cages: Offer tight tolerances for high-accuracy setups.
Where They’re Used: Industrial Applications
Ball cage bushes are found in:
- Injection molding machines
- Die sets for metal stamping
- Precision jigs and fixtures
- Robotic arms
- CNC machinery
- Packaging and filling machines
Basically, if something slides with precision under load, there’s a good chance ball cage bushes are behind it.
How to Keep Them Running: Maintenance Tips
While many bushes are low-maintenance or self-lubricating, a little care goes a long way:
- Keep them clean: Dust and debris can cause premature wear.
- Lubricate as recommended: Use the correct grease or oil periodically unless it’s a sealed/lube-free type.
- Check for wear: Look for changes in motion smoothness or play.
- Avoid misalignment: Proper installation ensures even load distribution.
Don’t Forget the Environment
When choosing ball cage bushes, consider the working environment:
- High humidity or wash-down areas? Go for stainless steel and corrosion-resistant materials.
- High-temperature applications? Use high-performance polymers or heat-treated metals.
- Cleanroom environments? Opt for dry-running or sealed models to avoid contamination.
Buyer’s Checklist: What to Look For
Before placing an order, make sure you’ve got these checked:
- ✓ Correct dimensions (inner/outer diameters, length, ball pitch)
- ✓ Material compatibility (steel vs. stainless, polymer cages, etc.)
- ✓ Load capacity
- ✓ Travel/stroke requirements
- ✓ Operating environment
- ✓ Interchangeability with current setup
- ✓ Lubrication requirements
- ✓ Delivery lead time
Customization & Compatibility
Need something special? Many suppliers offer custom solutions, including:
- Special lengths or diameters
- Non-standard ball spacing
- Lubrication holes or grooves
- Matching guide posts or shafts
Just make sure your supplier offers CAD files or 3D models to streamline your design process.
Standard Ball Cage Bush Sizing Guide
Here’s a simplified size chart to get started (actual specs may vary slightly by manufacturer):
| Model | Outer Ø (mm) | Inner Ø (mm) | Length (mm) | Ball Ø (mm) | Material |
| NFC BCB-12 | 12 | 8 | 20 | 2 | Steel/Bronze |
| NFC BCB-20 | 20 | 12 | 30 | 3 | Steel/Plastic |
| NFC BCB-25 | 25 | 16 | 35 | 3.5 | Bronze |
| NFC BCB-30 | 30 | 20 | 40 | 4 | Stainless |
Always refer to your supplier’s catalogue for detailed tolerances, preload options, and CAD models.
