High-Quality Aluminium Bronze Bushes | Durable & Corrosion-Resistant, high-strength, automotive bronze, heat-resistant, Flanged Bronze Bushes, Cast Bronze Bushing, Plain bushes in Mohali

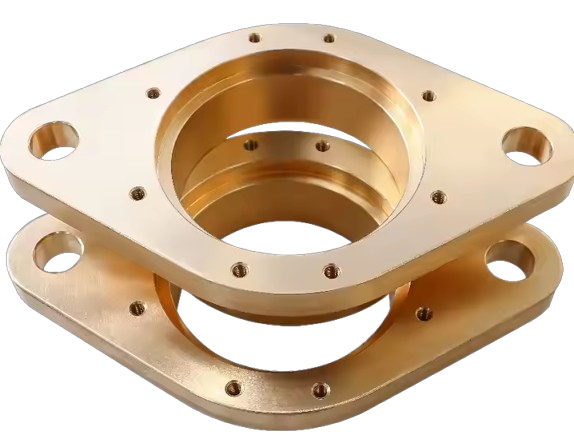

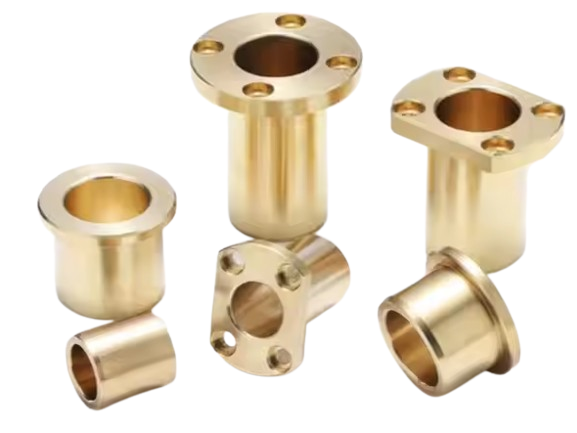

Aluminium bronze bushes are a type of bearing bushing made from a copper alloy containing aluminum and other elements. They are known for their high strength, wear resistance, and corrosion resistance. This makes them ideal for a wide range of applications, including marine, automotive, and industrial.
High-Performance aluminium bronze bush are typically manufactured using a casting process. This allows for precise dimensional control and ensures that the bushes have a consistent grain structure throughout. Aluminium bronze bushes are available in a variety of sizes and shapes to meet the specific needs of different applications.
Aluminium Bronze Bearing Solutions for Maximum Wear Resistance
What Are Aluminium Bronze Bushes?
Aluminium Bronze Bushes are cylindrical components used primarily to reduce friction and wear between moving parts in machinery. Made from a copper-aluminium alloy (with optional additions like iron or nickel), these bushes are known for their high strength, corrosion resistance, and durability – especially in tough environments.
They’re commonly pressed or machined into housings or bores, where they serve as a bearing surface between shafts and other rotating parts.
Key Features of Aluminum Bronze Bushes & Parts:
| 1. High Strength & Hardness | Comparable to low alloy steels. |
| 2. Excellent Corrosion Resistance | Particularly in marine, chemical, and industrial environments. |
| 3. Good Wear & Abrasion Resistance | Ideal for high-load applications. |
| 4. Low Friction & Self-Lubricating Properties | Reduces maintenance needs. |
| 5. High Thermal & Electrical Conductivity | Useful for electrical and heat applications. |
| 6. Good Machinability | Can be easily machined into complex shapes. |
Design and Material Specifications:
- Typical Composition:
- Copper (Cu): 78–89%
- Aluminium (Al): 8–12%
- Iron (Fe): 1–5%
- Nickel (Ni): 1–4% (optional, for higher corrosion resistance)
- Manganese or Silicon may also be present in small amounts
- Standards to Know:
- BS EN 12163 / BS 2874 (UK)
- ASTM B505/B271 (US)
- IS 305 (India)
- Common Grades:
- C95400: General-purpose; good strength and corrosion resistance
- C95500: Higher strength, often used in heavy-load situations
- AB2 (UK standard): High-performance marine grade
- Physical Properties:
- Hardness: 150–250 HB
- Tensile Strength: 500–850 MPa
- Yield Strength: 200–500 MPa
- Elongation: 10–25%
- Density: ~7.6–7.8 g/cm³
- Operating Temp: Up to 400°C (752°F) in dry running applications
Technical Specification of Aluminium Bronze Bushes & Components
The following are some typical product specifications for aluminium bronze bushes:
Material Composition: Aluminum bronze alloys typically contain 80-90% copper, 6-12% aluminum, and small amounts of iron, nickel, or manganese to enhance strength, corrosion resistance, and wear properties. Common standards include C95400, C95500, and C95800 in the ASTM B505 specification.
Mechanical Properties:
- Tensile Strength: 550-900 MPa (varies by alloy)
- Yield Strength: 250-450 MPa
- Elongation: 10-20%
- Hardness: 150-280 HB (Brinell)
- Wear resistance: Excellent
- Corrosion Resistance: Excellent
- Coefficient of Friction: Low, reducing wear in high-load applications
Key Features of Aluminium Bronze Bushes
Aluminium bronze bushes offer a number of features that make them ideal for a wide range of applications, including:
✔ High Strength and Wear Resistance: Crownengineer’s aluminium bronze bushes are capable of withstanding heavy loads and high speeds. They are also very resistant to wear and tear, even in abrasive environments. Comparable to low-alloy Steels
✔ Superior Corrosion & Chemical Resistance: Aluminium bronze bushes are highly resistant to corrosion, making them ideal for use in marine and other corrosive environments. Ideal for marine, chemical, and oil & gas applications.
✔ Excellent Wear Resistance – Reduces maintenance & replacement costs.
✔ Self-Lubricating Properties – Suitable for high-friction environments.
✔ Good Machinability & Castability: Aluminium bronze bushes are relatively easy to machine, making them suitable for a variety of applications. Enables complex component manufacturing.
✔ Long Service Life: Aluminium bronze bearing have a long service life, even in demanding applications.
Common Applications of Aluminium Bronze Bushes
Bearings & Bushings: For pumps, compressors, and heavy-duty machinery
Gears & Worm Wheels – Used in power transmission systems
Valves & Hydraulic Components – For oil & gas, water treatment, and aerospace industries
Non-Sparking Tools & Parts – Safe for hazardous environments (ATEX certified industries)
Shipbuilding & Marine Parts – Corrosion-resistant solutions for propeller shafts and seawater valves
Marine: Used in marine applications, such as propellers, shafts, and pumps.
Automotive: Used in a variety of automotive applications, such as transmissions, differentials, and engines.
Industrial: Used in a wide range of industrial applications, such as mining, oil and gas, and food processing.
Other applications:
In addition to the applications listed above, aluminium bronze bushes are also used in a variety of other applications, including:
- Aerospace
- Power generation
- Construction
- Agriculture
- Machine tools
Aluminium bronze bushing is engineered for higher strength and longer life. Our offered bushes are based on advanced technology. Keeping global quality standards in mind, we bring excellent quality aluminium bronze bushing. It is perfect in thickness, length, diameter and width with high corrosion resistance alloy having superior strength & is generally used for impeller / bushes. The offered components provide easy & safe installation. Also, the maintenance required is very low. Our prices are affordable along with exact specifications of bushing and also stands guarantee for material specification & products will be completely free from any types of porosity/blow holes.
Please Furnish Following Details to Submit Our Latest Offer:
a) Technical Drawing OR sample
b) Material Specifications, if any
c) Quantity Required per consignment.
